Spiral n-gang Silo

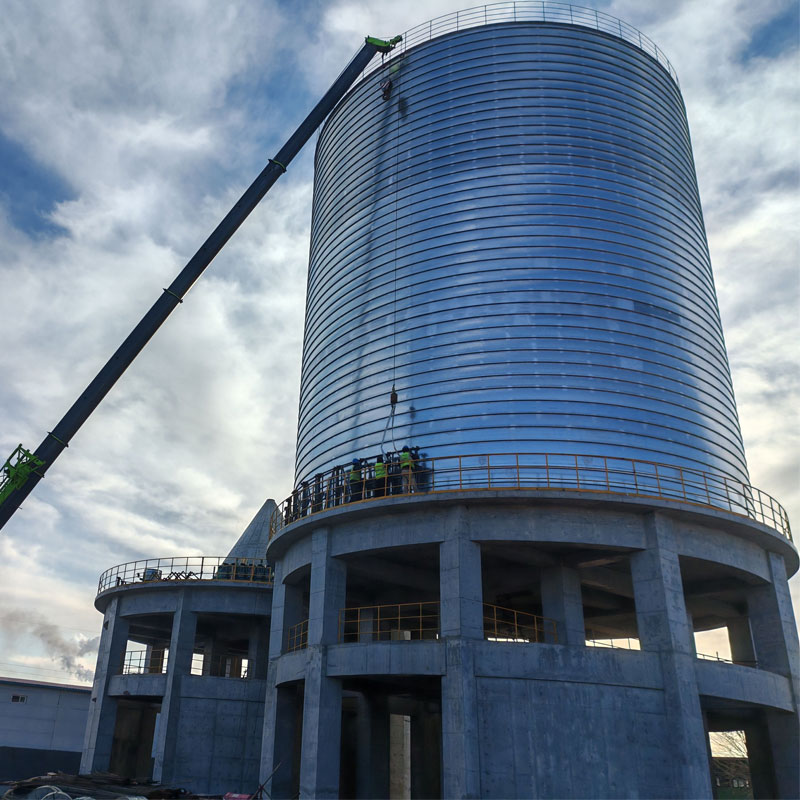

Spiral Steel Silo

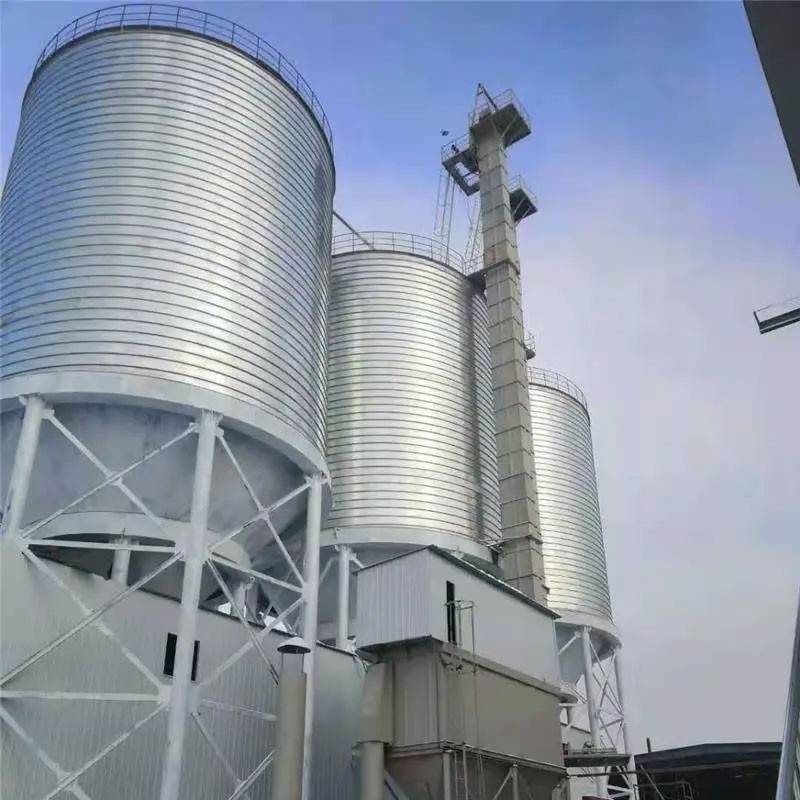

Spiral Steel Silo suppliers

Product Introduction:

Hkaulan mam, cement, hte n-gu n-gun rawng ai arung arai ni a matu -madang kaba tawn da ai ladat ni
Atsam: Ton 50-50,000
Lamu ga jarit: 3-60 m
Magam bungli prat: 25–30 ning
Install galaw na aten: 7–15 ya
Custom design hte maigan de install galaw na matu lam matsun ni hpe lu la mai ai

San sagawn ai lam hpe sa dat u

Sanglang dan ai lam

Technical Parameters ni

lachyum gaw, mungkan uphkang masa gaw aten hte maren hkan sa ra ai,

Hpaga arai ni hpe sang lang dan ai

Dain-gang n-gang silogaw on-site spiral forming hpaji hpe jai lang nna galaw da ai, dai ni na aten na shingbyi shara langai mi re. Steel sheets ni hpe matut manoi shinggrup ai hku nna, transverse welds n lawm ai structure hpe shabyin ya nna, n-gun kaba ai, grai kaja ai sealing, lawan ai hku gawgap lu ai.

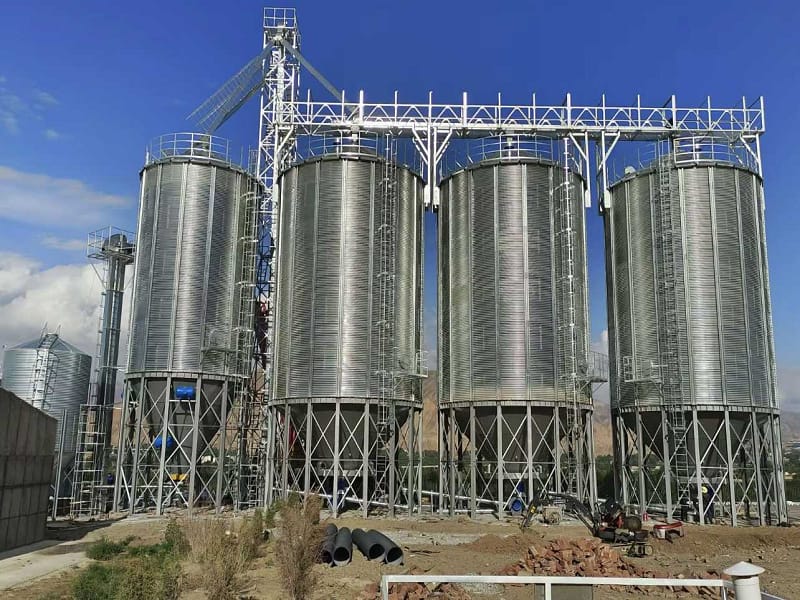

product-800-600

Madung masat masa ni

Parameter	Masat masa madang
Galaw lu na atsam	50T – 50,000T
Diameter	3m – 60m
Arung arai	Galvanized n-gang / n-hten ai n-gang
Plate n-gun	2-6 mm
Magam Prat	25 – 30 ning laman
Nbung & Nbung laru hpe ninghkap lu ai atsam	Grade 12 Nbung / Magnitude 8 Nbung laru

Hkrak ai lam ni hpe lu la u

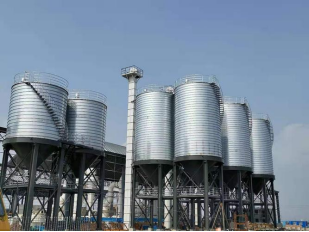

Gawgap ai shara

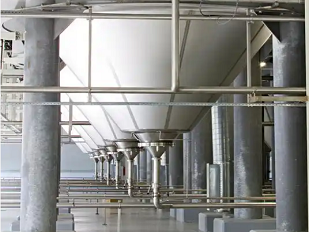

Construction site of a spiral steel silo

Hpaji masa npawt tara ni

Spiral shada da matut mahkai ai hkrang

Spiral steel silos ni hpe laksan jak ni hpe lang nna galaw ai rai nna, n-gang n-gang ni hpe matut manoi shinggrup nna, 30–40 mm dam ai spiral n-gun ja ai n-gang ni hpe galaw shapraw ai. Ndai n-gup magap ni gaw, npawt nhpang n-gun hta na htam manga daram galu ai majaw, lit yawng hpe hkam sharang lu ai atsam hpe grai jat ya lu ai.

Welding n galaw ai → Hkrang nsam gawng kya ai lam ni hpe yeng seng kau ya ai

Tinang hkum hpe-hkap pat da ai hkrang → ngang grin ai lam hpe shatsaw ya ai

Matut manoi hkrang shapraw ai → Grau bung ai n-gun

Htunghking hku galaw da ai silo ni hte shingdaw yang: Structural n-gun gaw 30% jan jat wa ai

Madung akyu ni

N-gun ja ai hkrang, shim lum lam tsaw ai

Spiral seams ni hta n-gun gaw, shawng na steel plate hta na htam manga daram galu nna, nbung laru, nbung, hka lim ai lam ni hpe grai kaja hkra ninghkap lu ai vertical hte circumferential stiffeners ni hpe shabyin ya ai. Dai spiral steel silo hta weld (sh) bolt hka htung ni n lawm ai majaw, grai kaja ai npawt nhpang hpe hkam la lu nna, n-gun n rawng ai hte hka pru wa ai hpe ninghkap lu ai.

Grai kaja ai nbung n shang lu ai

Matut manoi jak hte matut mahkai ai n-gang ni hte nbung pru ai lam 0.1% hta n-pu (sh) maren sha re ai ndai silo ni gaw mam hpe n-gun n rawng ai wan n-gun ni hte shinggyin tawn da na matu ra kadawn ai lam ni hpe hkan sa lu ai majaw, n-gun n rawng ai nli tum ni hpe atsawm sha hkang lu ai.

Lawan ai hku gawgap ai

On-site jak hte shinggrup ai gaw, silo langai hpe ( Ton 5,000 hta n-pu (sh) maren sha) hpe nhtoi 7–15 ya laman sha ngut kre lu shangun ai-concrete silo ni hta htam 5–8 grau lawan ai.

N-gun n law ai (dai zawn re ai n-gun atsam rawng ai concrete silo a n-gun atsam a 1/6 daram), npawt nhpang manu n law ai. 15%–20% n-gun rawng ai welded silo ni hta grau manu dan ai.

Compact lagaw lahkam hte shara law law jai lang ai

Silo diameter hte tsaw ai hpe galai shai mai ai; 500 mm daram sha nga ai silo gap hkat ai lam gaw, lamu ga hpe hkye la lu ai.

Laika shawk shawn ai lam ni

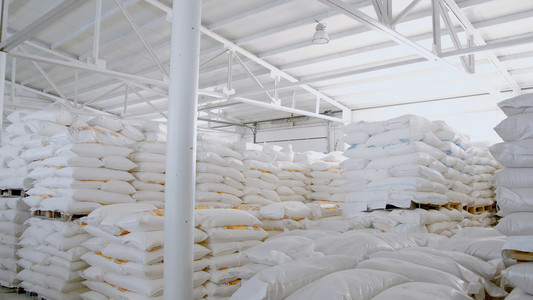

Hkaulan mam hpaga lam

Spiral steel silos hpe mam htu ai shara, muk tawng, hkaulan mam htu ai shara, tsabyi htu ai shara ni hta lang nna, mam, hkaulan mam, hkaulan mam, hkaulan mam hte kaga hkaulan mam ni hpe tawn da mai ai.

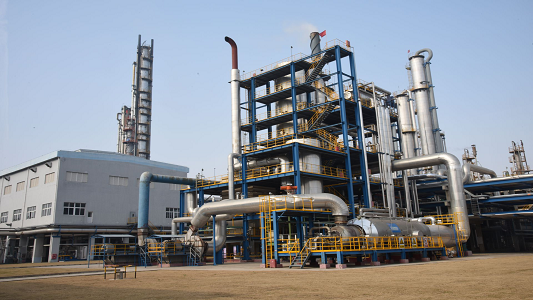

Nta gap ai arung arai (sh) Cement hpaga lam

Cement galaw ai shara ni, htu ai shara ni, kayau ai shara ni hta ndai silo ni hpe lang nna, cement, fly ash, slag n-gun, limestone n-gun zawn re ai n-gun rawng ai arung arai ni hpe tawn da ma ai.

Steel silo kaba ni gaw hka lim ai hte hka lim ai hpe atsawm sha pat shingdang ya nna, ngam ai hka pru ai lam gaw 100 daram rai nga ai.<0.2%.

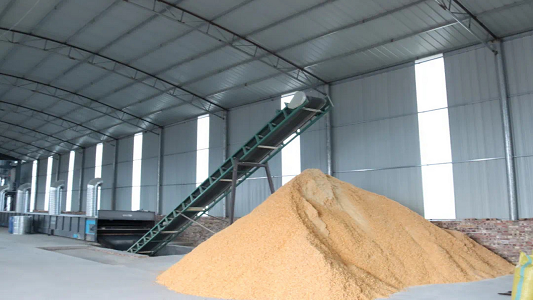

Lusha hte sau hpaga lam

Feed mill ni hte oil mill ni gaw, hkaulan mam, hkaulan mam, bran, rapeseed zawn re ai, n-gun n rawng ai arung arai ni hte ngut sai arai ni hpe shinggyin tawn na matu lang nna, n-gun n rawng ai makau grup yin hpe jaw ya ai majaw, n-gun n rawng ai makau grup yin hpe jaw ya ai.

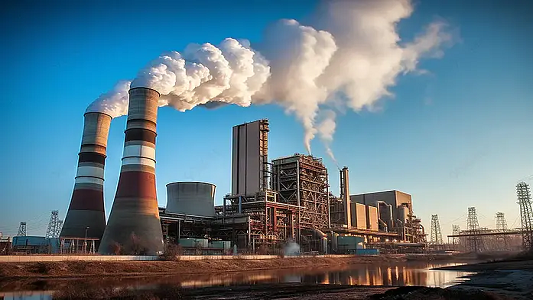

Chemical hte grup yin makawp maga ai hpaga lam

Chemical plant ni, tsi galaw ai shara ni, hte hkaulan mam hkai sun ni hta, hkaulan mam hkaulan mam, tsi mawan n-gu, jat bang ai arung arai ni, hte kaga arung arai ni hpe tawn da na matu jai lang nna, malu masha-grade san seng ai madang ni hpe hkan sa nna, awu asin byin ai lam hpe makawp maga ya ai.
